C60 Series Touch Control Speed Controllable Diaphragm Pump

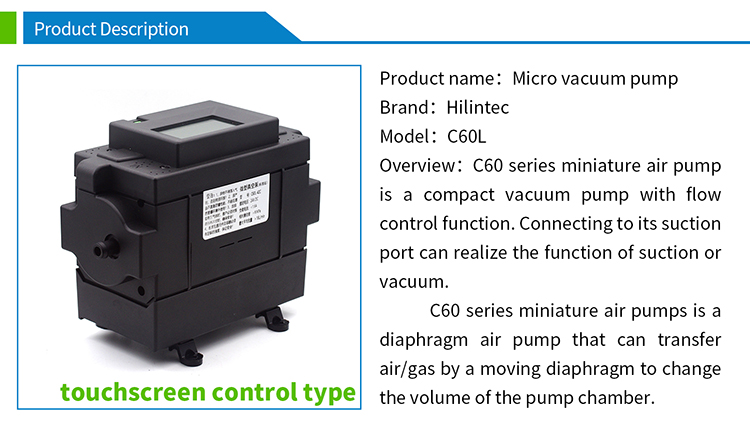

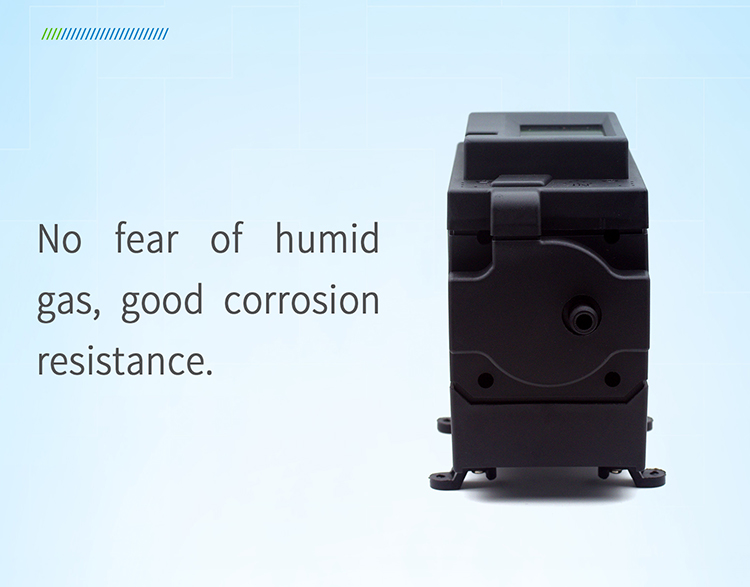

The C60 series miniature air pump is a compact diaphragm vacuum pump with integrated speed and flow control function. The suction port connected to it can achieve the function of pumping or vacuuming.
The main application areas include: gas analysis, environmental protection testing, laser equipment, biochemical medicine, test equipment, etc.
It is especially suitable for scenarios with limited installation space,requiring high flow and high vacuum. This model series is equipped with an LCD display and can realize touch control with high reliability, peak flow rate 30L/min.
The main application areas include: gas analysis, environmental protection testing, laser equipment, biochemical medicine, test equipment, etc.
It is especially suitable for scenarios with limited installation space,requiring high flow and high vacuum. This model series is equipped with an LCD display and can realize touch control with high reliability, peak flow rate 30L/min.

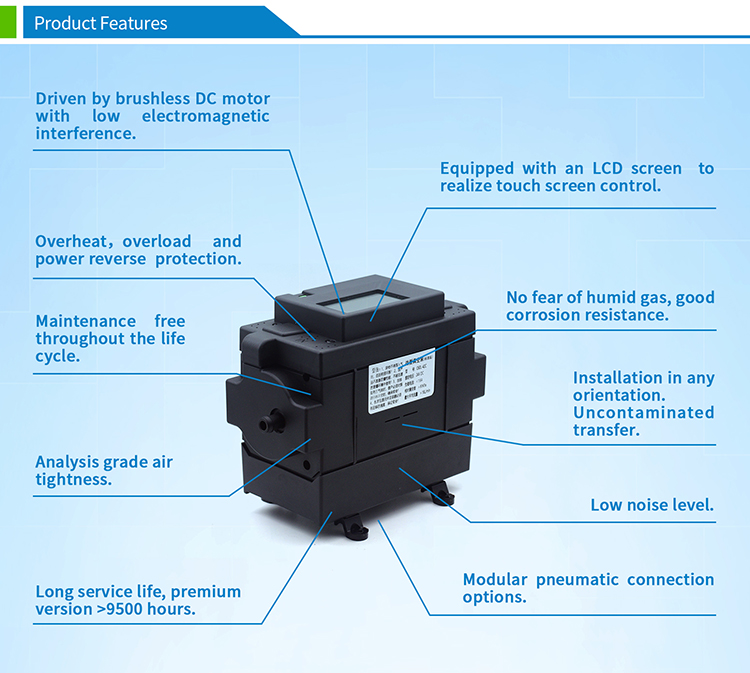

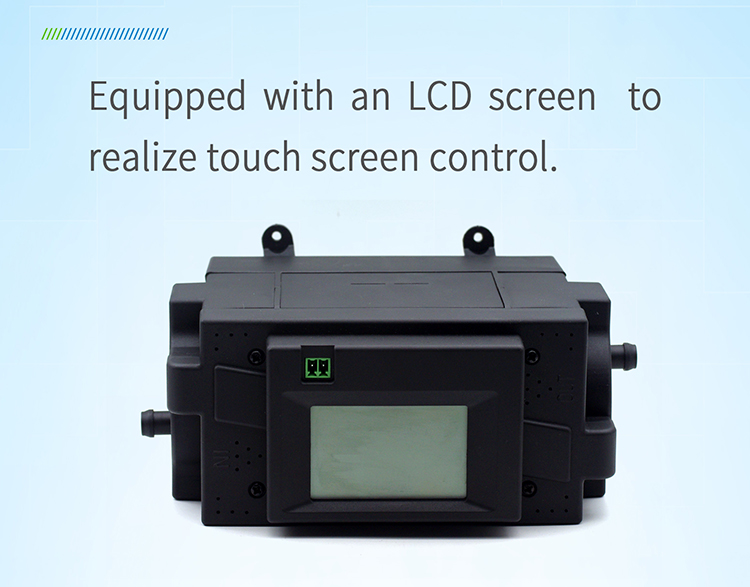

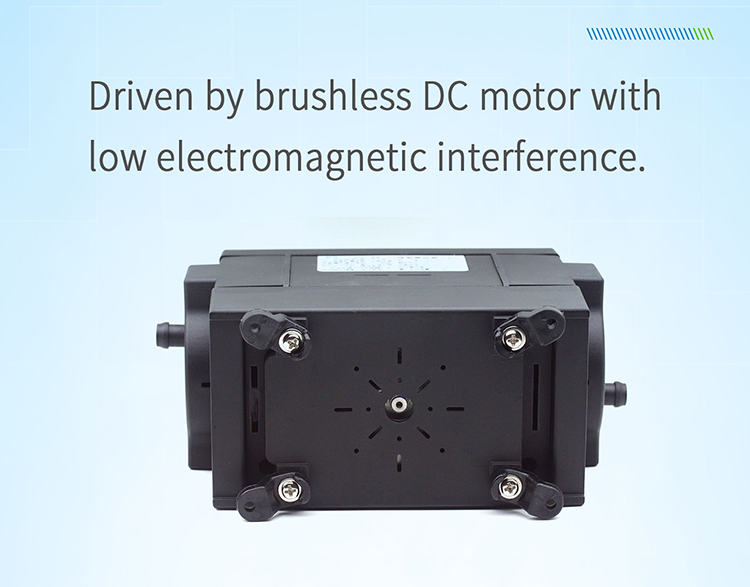

■Equipped with LCD touch screen DC brushless motor and replaceable pneumatic connector

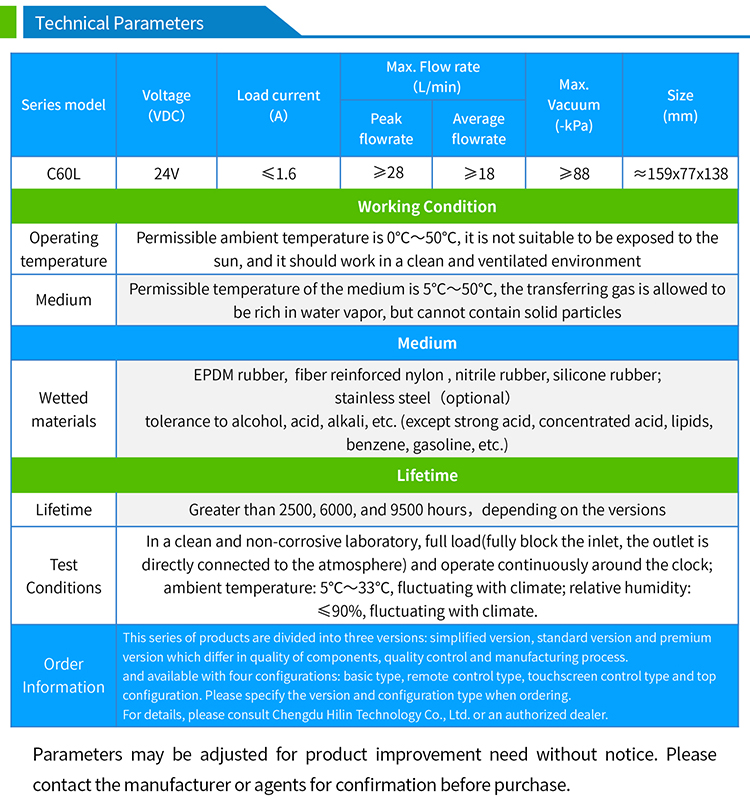

■No-load average flow: 18L/min
■No-load peak flow: 28L/min
■Relative vacuum: -88kPa
■Overall life: premium version>9500hrs
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Download C60 Series Touch Control Speed Controllable Diaphragm Pump Brochure
