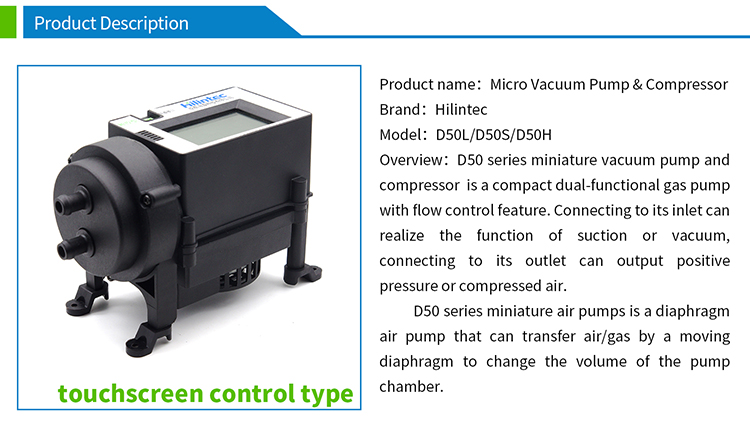

D50 series touch control dual-purpose diaphragm air pump
The D50 series miniature air pump is a compact diaphragm vacuum pump with integrated speed and flow control function. The suction port connected to it can realize the function of pumping or vacuuming, and the exhaust port connected to it can realize the function of blowing or pumping.
The main application areas include: gas analysis, environmental protection testing, laser equipment, biochemical medicine,lab equipment, etc.
It is especially suitable for scenarios where installation space is not large, large flow is required, and there is resistance in discharging gas. The pump is equipped with an LCD display, which can realize touch control of the start-stop and speed of the pump, and can also display fault codes. It has high reliability and a peak flow rate of 15L/min.
The main application areas include: gas analysis, environmental protection testing, laser equipment, biochemical medicine,lab equipment, etc.
It is especially suitable for scenarios where installation space is not large, large flow is required, and there is resistance in discharging gas. The pump is equipped with an LCD display, which can realize touch control of the start-stop and speed of the pump, and can also display fault codes. It has high reliability and a peak flow rate of 15L/min.

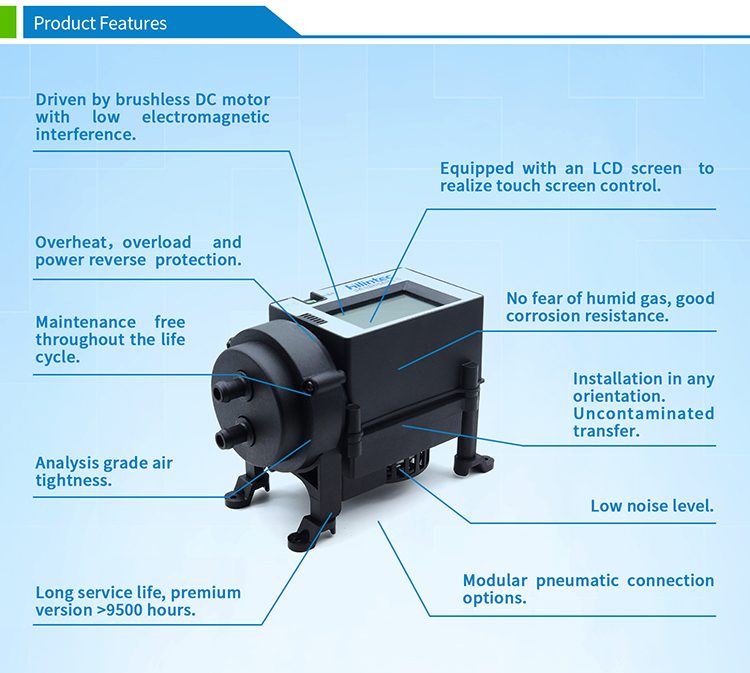

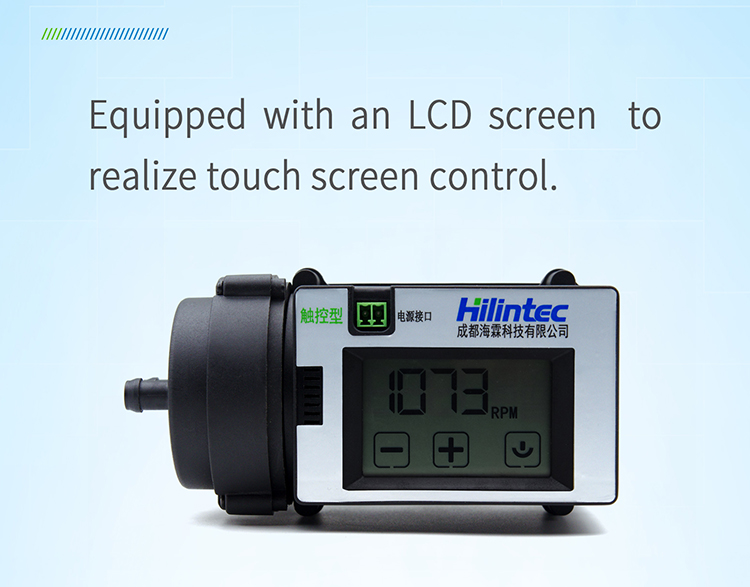

■Equipped with touch LCD screen and replaceable pneumatic connector

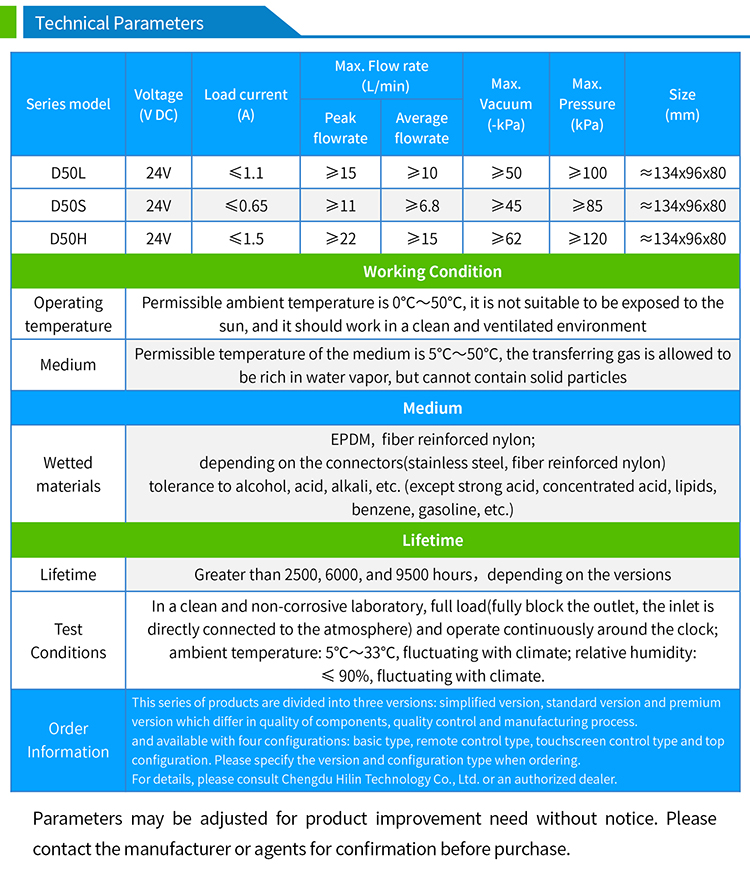

■No-load average flow: 6.8/min~15L/min
■Maximum output pressure: 85kPa~120kPa
■Relative vacuum: -45kPa~-62kPa

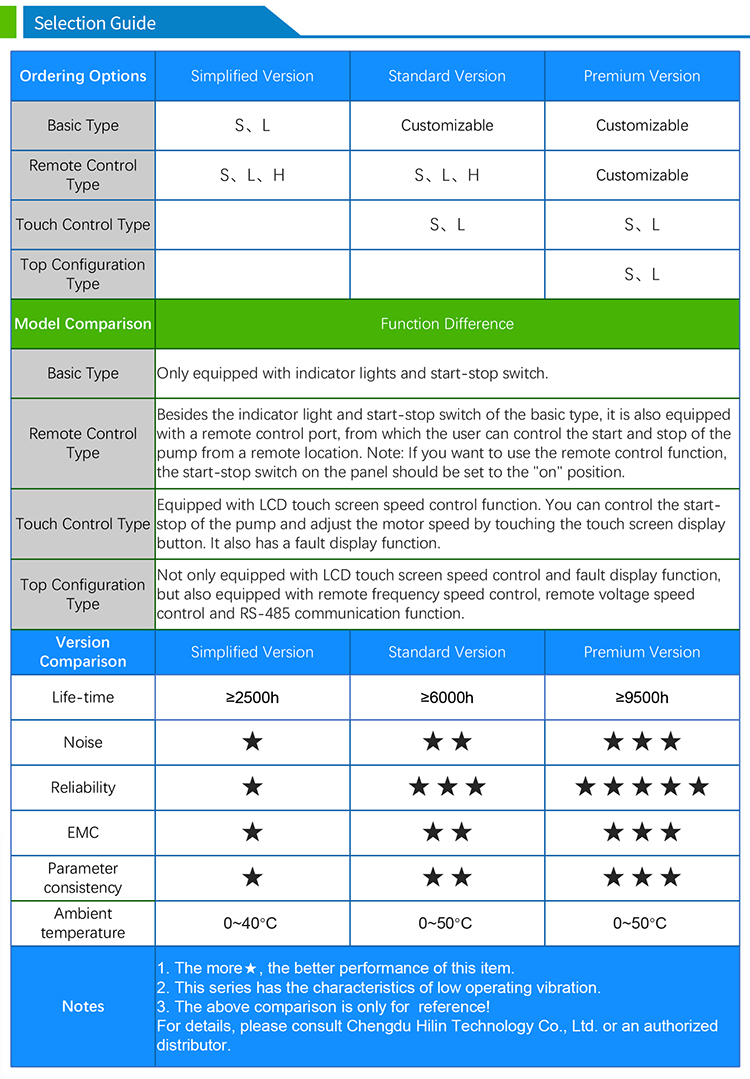

■Overall life: premium version>9500hr
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Download D50 series touch control dual-purpose diaphragm air pump Brochure
