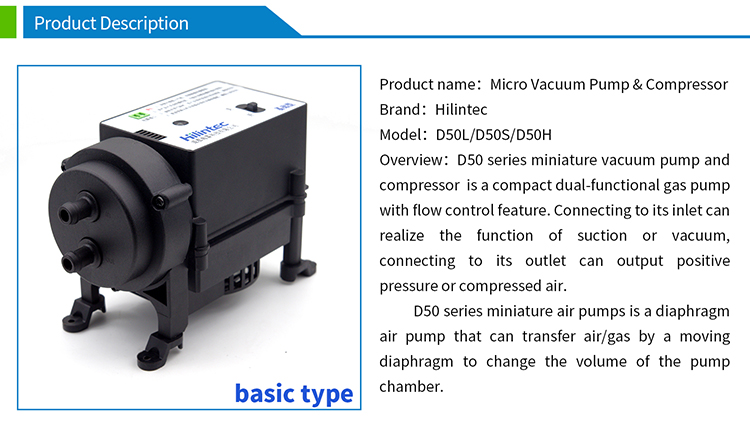

D50 series dual-purpose diaphragm micro vacuum pump
The D50 series miniature air pump is a compact diaphragm vacuum pump with integrated speed and flow control function. Connecting its suction port can realize the function of pumping or vacuuming, and connecting its exhaust port can realize the function of blowing or pumping.
The main application areas include: gas analysis, environmental protection testing, laser equipment, biochemical medicine, lab equipment, etc.

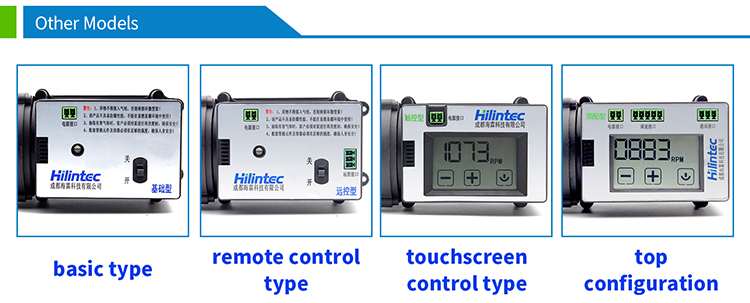

It is especially suitable for scenarios where installation space is not large, large flow is required, and there is resistance in discharging gas. The pump supports touch control or remote control with high reliability and a peak flow of 15L/min.
The D50 series miniature air pump is a compact diaphragm vacuum pump with integrated speed and flow control function. Connecting its suction port can realize the function of pumping or vacuuming, and connecting its exhaust port can realize
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Download D50 series dual-purpose diaphragm micro vacuum pump Brochure
